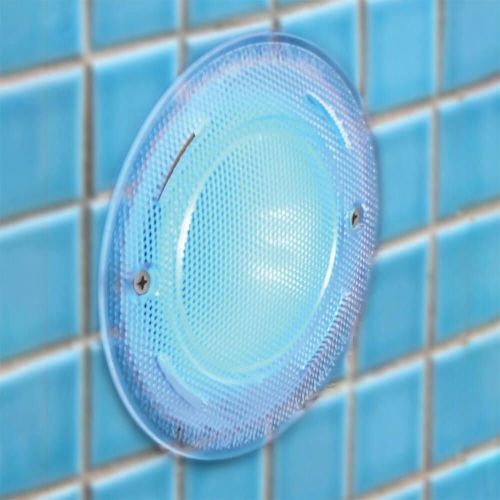

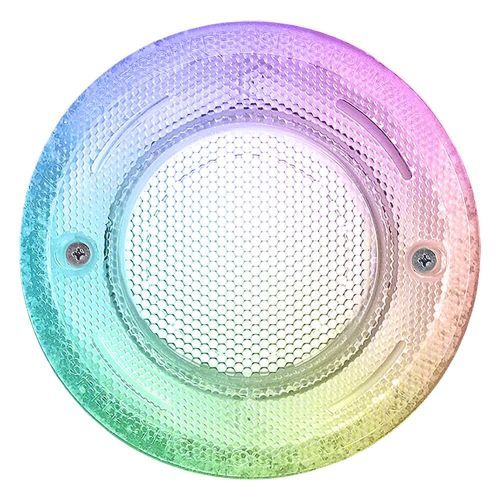

Aqua-Quip EvoMAX LED Niche Pool Light
Maximum Brightness. Minimal Profile. Total Impact.
The Aqua-Quip EvoMAX LED Niche Pool Light is engineered for maximum brightness and visual impact—without compromising on sleek design. With a flush-mounted profile that protrudes just 9mm from the pool wall, EvoMAX delivers powerful illumination and refined aesthetics for concrete and fibreglass pools, spas, water features, and catch tanks.
Its advanced lens design eliminates harsh hotspots by diffusing light evenly across the pool surface, while distinctive side-lighting effects enhance ambience and visibility. Installation is fast and flexible thanks to Aqua-Quip’s patented Quick Connect Plug Kit, which allows the cable to be detached for servicing or upgrades. Available in fixed colours (Blue, White, Warm White) or Multi-Colour, EvoMAX integrates seamlessly with Aqua-Quip’s InstaTouch Smart Lighting Controller, standard wall switches, or third-party automation systems.
Whether you’re lighting a new build or replacing outdated niche lights, EvoMAX delivers premium performance, installer-friendly features, and a polished finish. For added elegance, installers can add the optional mirror-polished stainless steel trim ring.
⚙️ Technical Specifications
| Feature | Details |
|---|---|
| Light Type | Flush-mounted LED niche light |
| Pool Type | Concrete & fibreglass pools, spas, water features, catch tanks |

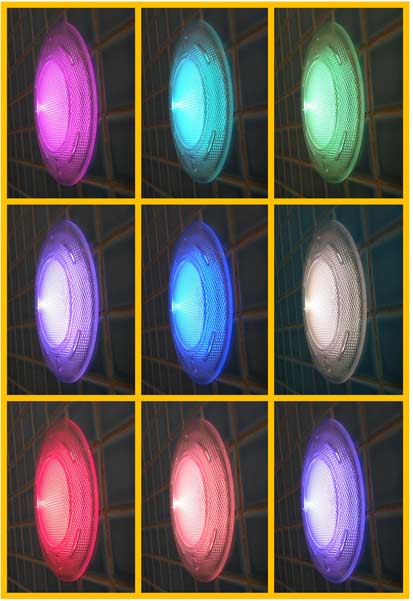

| Colour Output | Fixed Blue, White, Warm White or Multi-Colour |
| Cable Length Options | 20m, 30m, 40m |
| Mounting Style | Flush-mounted niche |
| Protrusion from Wall | 9mm |

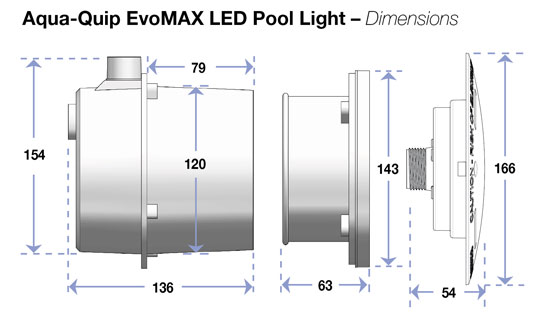

| Lens Diameter | 166mm |
| Voltage Compatibility | 12V AC |
| Power Consumption | Multi-Colour: 30VA max |
| Blue/White/Warm White: 25VA | |
| Light Output (Typical) | Blue: 300 lm / White: 985 lm / Warm White: 985 lm |
| IP Rating | IPX8 (submersible) |
| Stainless Steel Trim Ring | Optional (P/N MXA056) |
| Controller Compatibility | Aqua-Quip InstaTouch, wall switch, third-party systems |
| Brand | Aqua-Quip |
| Certification | Australian Made |
💡 Key Features
- Flush-mounted profile with just 9mm protrusion
- Maximum brightness with advanced lens diffusion
- Distinctive side-lighting effects for enhanced ambience
- Quick Connect Plug Kit for fast installation and servicing
- Available in Blue, White, Warm White, or Multi-Colour
- Compatible with InstaTouch and third-party controllers
- Optional mirror-polished stainless steel trim ring
- Ideal for new builds and retrofits in concrete or fibreglass pools
- IPX8-rated for underwater reliability
- Australian made for long-term durability
📦 What’s Included
- 1 x EvoMAX LED Niche Light Factory-sealed with high-output LED core and flush lens.
- 1 x Quick Connect Plug Kit IP-rated plug with colour-coded seals for watertight connection.
- 1 x Optional Stainless Steel Trim Ring (P/N MXA056) Available separately for premium finish.
- 1 x Installation Guide Step-by-step instructions for concrete and fibreglass pool mounting.
❤️ Why We Love EvoMAX
EvoMAX is built to impress. It delivers the highest brightness in Aqua-Quip’s niche light range while maintaining a sleek, flush-mounted profile. The advanced lens design eliminates hotspots and adds elegant side-lighting effects that elevate any pool environment. Whether you’re installing new or retrofitting old systems, EvoMAX makes every job look sharp and perform brilliantly.
🧠 Wrap-Up Summary
The Aqua-Quip EvoMAX LED Niche Pool Light is the premium choice for installers who demand maximum brightness, minimal profile, and total flexibility. With advanced optics, smart compatibility, and installer-friendly features, EvoMAX sets the standard for underwater lighting in both concrete and fibreglass pools.
