Description
Aqua-Quip Evo2 LED Niche Pool Light
Flush-mounted LED light for new concrete pools, spas & water features
The Aqua-Quip Evo2 LED Niche Pool Light sets a new benchmark in underwater lighting, combining sleek aesthetics with high-performance engineering. Designed specifically for new concrete pools, spas, and water features, Evo2 features a flush-mounted profile that extends just 6mm from the pool wall—delivering a clean, modern finish without compromising brightness or durability.
From installation to long-term servicing, Evo2 streamlines every step. Aqua-Quip’s Quick Connect Plug Kit simplifies setup and allows fast, tool-free detachment for maintenance or upgrades. Installers can choose between fixed colour options—Blue, White, or Warm White—or opt for Multi-Colour output to create dynamic lighting effects.
⚙️ Technical Specifications
| Feature | Details |
|---|---|
| Light Type | Flush-mounted LED niche light |
| Pool Type | New concrete pools, spas, water features |

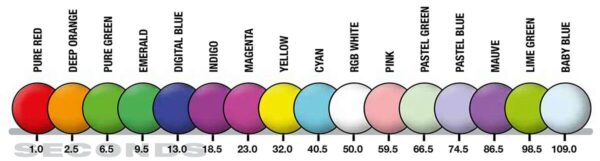

| Colour Output | Fixed Blue, White, Warm White or Multi-Colour |
| Cable Length Options | 20m, 30m, 40m |
| Mounting Style | Flush-mounted niche |

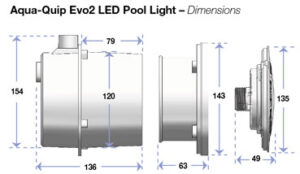

| Protrusion from Wall | 6mm |
| Lens Diameter | 136mm |
| Voltage Compatibility | 12V AC |
| Power Consumption | Multi-Colour: 20VA max |
| Blue/White/Warm White: 11VA | |
| Light Output (Typical) | Blue: 180 lm / White: 550 lm / Warm White: 550 lm |
| IP Rating | IPX8 (submersible) |

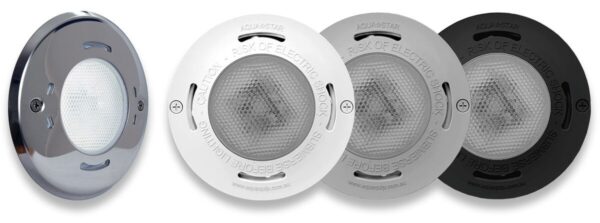

| Stainless Steel Trim Ring | Optional (P/N ASS056) |
| Controller Compatibility | Aqua-Quip InstaTouch, wall switch, third-party systems |
| Brand | Aqua-Quip |
| Certification | Australian Made |
💡 Key Features
- Ultra-slim 6mm protrusion for a flush, modern finish

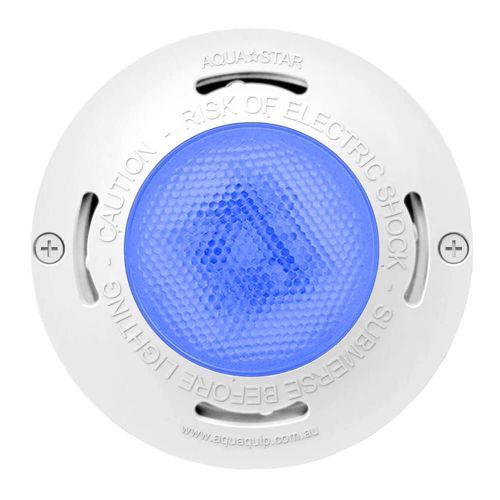

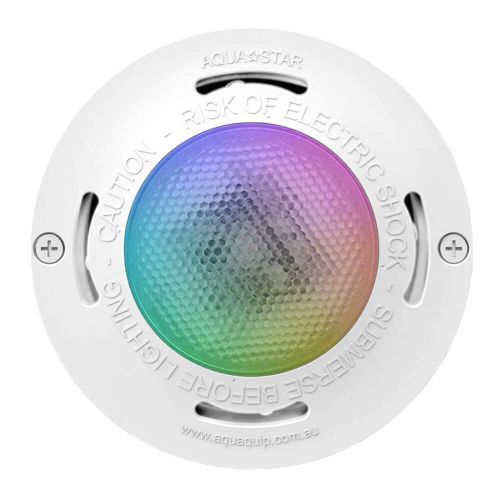

- Available in Blue, White, Warm White, or Multi-Colour
- Quick Connect Plug Kit for fast installation and servicing
- Compatible with Aqua-Quip InstaTouch and third-party controllers

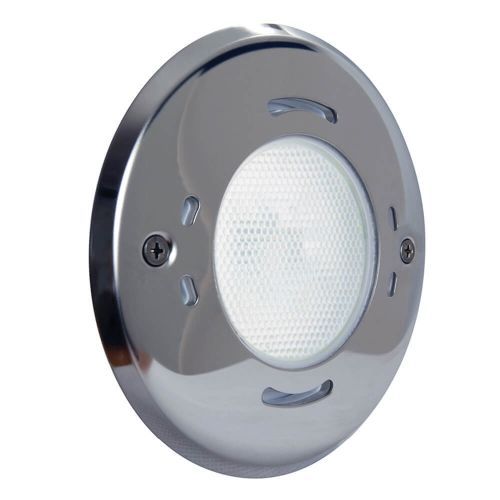

- Optional mirror-polished stainless steel trim ring
- Advanced LED core with thermal management system
- IPX8-rated for underwater reliability
- Designed for new concrete pools, spas, and water features
- Australian made for long-term durability
📦 What’s Included
- 1 x Evo2 LED Niche Light Factory-sealed with high-efficiency LED core and flush lens.
- 1 x Quick Connect Plug Kit IP-rated plug with colour-coded seals for watertight connection.
- 1 x Optional Stainless Steel Trim Ring (P/N ASS056) Available separately for premium finish.
- 1 x Installation Guide Step-by-step instructions for concrete pool mounting and wiring.
❤️ Why We Love Evo2
Evo2 isn’t just sleek—it’s smart. With a flush-mounted profile, high-output LED performance, and flexible control options, it’s built for installers who want style and reliability in one package. The Quick Connect system saves time on site, while the optional stainless steel trim ring adds a luxury finish that pool owners love.
🧠 Wrap-Up Summary
The Aqua-Quip Evo2 LED Niche Pool Light is the go-to choice for new concrete pool builds. With ultra-slim styling, powerful illumination, and installer-friendly features, Evo2 delivers a premium lighting experience that’s built to last. Whether you’re lighting a spa, water feature, or full-size pool, Evo2 makes every install look sharp and shine bright.
