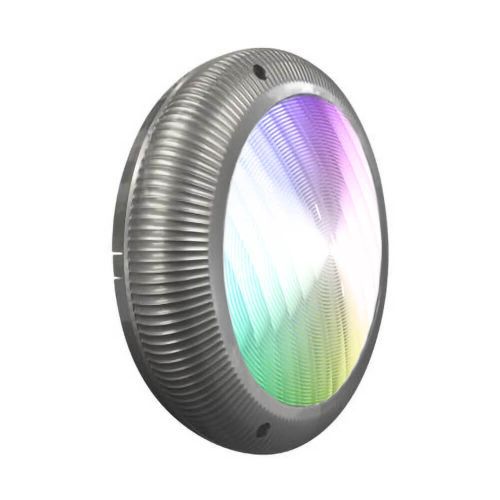

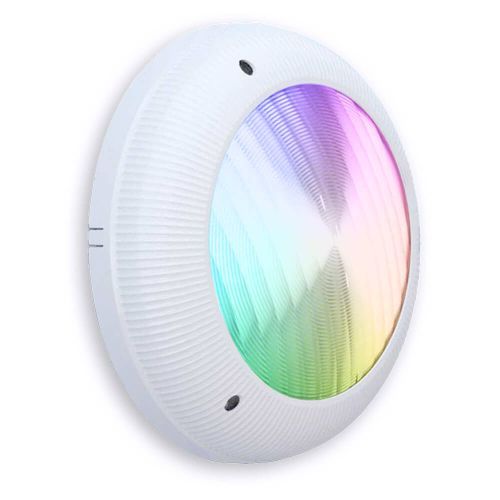

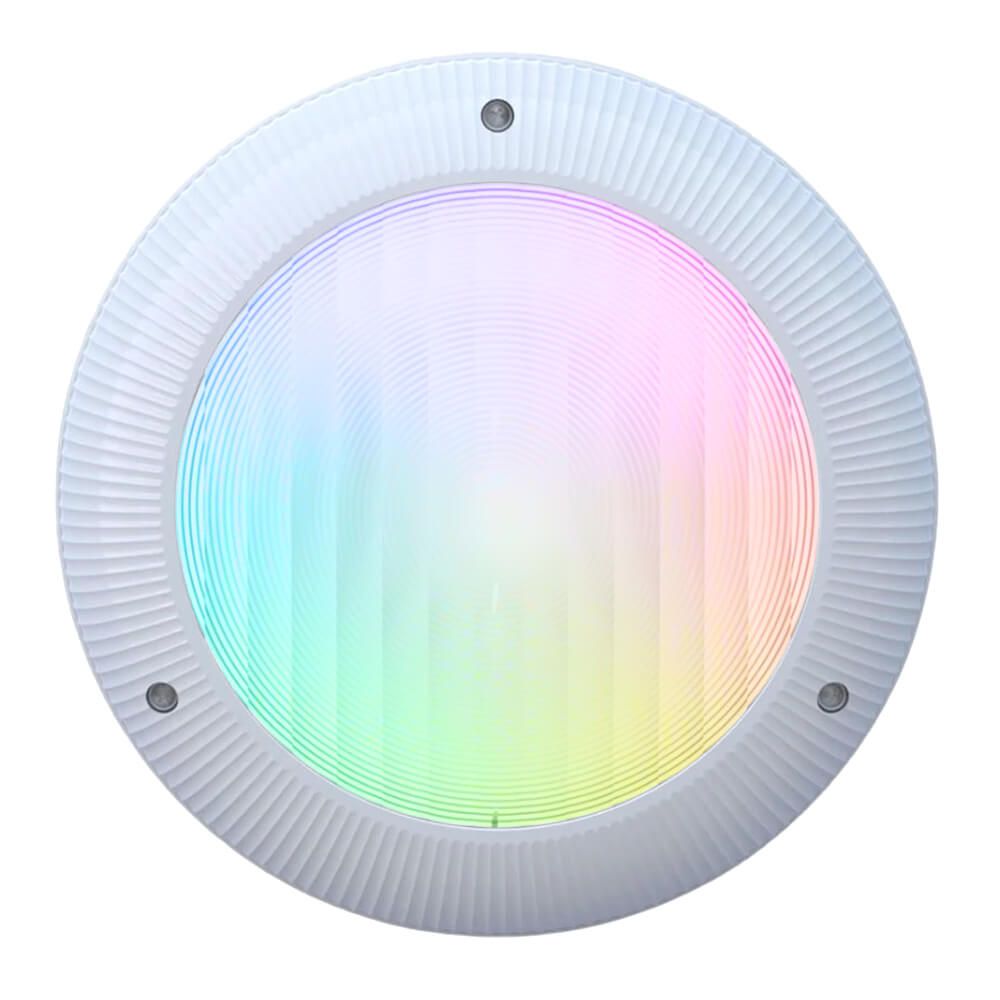

Aqua-Quip QC Series Multi-Colour LED Retro-Fit Pool Light
With Concrete Universal Mounting Bracket & Quick Connect Plug Kit
The Aqua-Quip QC Series Multi-Colour LED Pool Light is a retrofit-ready lighting solution for concrete pools, designed to replace outdated halogen or LED systems with vibrant, energy-efficient colour. This standalone unit includes a surface-mounted LED light, universal mounting bracket, and IP-rated Quick Connect Plug Kit—cable sold separately.
Powered by Aqua-Quip’s high-efficiency LED core, the light delivers vivid Red, Green, Blue, and White output with smooth diffusion across the pool surface. The twist-lock bracket fits over 25 legacy light models, making installation fast and non-invasive. Compatible with external RGB controllers and leading automation systems, it’s ideal for installers upgrading existing pools or customizing new builds.
For more information on Aqua-Quip’s lighting range, visit
🔄 Compatible Pool Light Brands (Retrofit Chart)
The QC Series lights are designed to replace the following surface-mounted pool lights:
| Aqua-Quip Classic, Spectrum, Halogen | Sunline / Rivendale |
| Aqua-Quip QC Series | Emaux E-Lumen |
| Spa Electrics GKRX, GK7, GZ Series | Waterco Britestream MKIV & MKV |
| Swimworld | Zodiac Lumipower SM |
| Autumn Solar Series 1–8 | Magic Pool Products |
| PAL2000 | Filtrite SM400 (requires locating bar) |
| Pool Rite | Varimode |
| Stroud | Stroud C150 |
⚙️ Technical Specifications
| Feature | Details |
|---|---|
| Light Type | Surface-mounted LED |
| Pool Type | Concrete pools |
| Colour Output | Quad Colour RGB (Red, Green, Blue, White) |
| Cable | Not included |
| Mounting Kit | Universal concrete bracket included |
| Voltage Compatibility | 12V AC – 32V AC |
| Retrofit Compatibility | Fits 25+ legacy models |
| Installation | Surface mount with IP68-rated Quick Connect Plug Kit |
| Protection Rating | IPX8 (submersible up to 2.0m depth) |
| Rim Colour Options | White or Metallic Grey |
| Controller Required | Yes (external RGB controller) |
| Light Output (Typical) | White = 1050 lm / Blue = 300 lm / Green = 650 lm |
| Fault Protection | Thermal cut-out + voltage transient clamping |
| Certification | Australian Made |
| Brand | Aqua-Quip |
💡 Key Features
- Multi-colour RGB output: Red, Green, Blue & White
- Surface-mounted LED light with universal bracket
- Quick Connect Plug Kit for watertight installation
- Compatible with 25+ legacy surface-mounted lights
- Works with external RGB controllers and automation systems
- Rim available in White or Metallic Grey
- Energy-efficient LED core with fault protection
- Australian made for long-term durability
- Cable not included—sold separately
📦 What’s Included
- 1 x QC Multi-Colour Retro-Fit LED Light (P/N LED024T) Factory-sealed with proprietary diffusion lens for even colour dispersion.
- 1 x Universal Mounting Bracket (P/N APL050) Multiple screw hole patterns for wide retrofit compatibility.
- 1 x Quick Connect Plug Kit (P/N LED375) Waterproof, colour-coded seals for secure cable connection.
- 1 x Design Ring – White (P/N LED151) or Metallic Grey (P/N LED152) Adds a sleek, decorative finish to the installed light.
- 1 x PE6 Screw Kit (P/N APL006) Secures the light to the mounting bracket’s three posts.
🧠 Why Choose Aqua-Quip QC Series Multi-Colour LED Pool Light?
This standalone Aqua-Quip QC Series Multi-Colour LED Pool Light is perfect for installers who already have cabling in place or want to customize their setup. With brilliant RGB output, wide retrofit compatibility, and installer-friendly hardware, it’s a smart, flexible solution for concrete pool lighting upgrades.
