Description

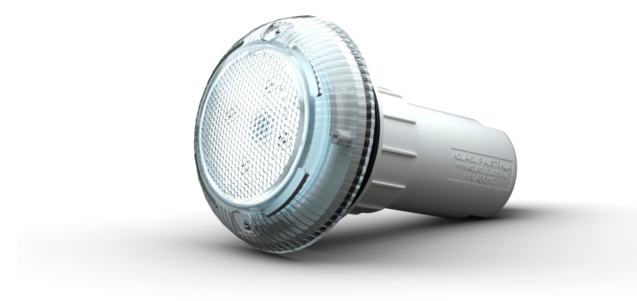

Aqua-Quip EvoFG LED Pool Light
Low profile. Easy install. Big visual impact.
The Aqua-Quip EvoFG LED Pool Light is purpose-built for fibreglass and above-ground vinyl pools, offering a sleek, flush-mounted finish with powerful LED performance. Designed to fit through a 60mm wall panel hole, EvoFG installs cleanly without structural disruption—even in panels up to 40mm thick.
Its compact niche houses 1.2m of factory-wound cable, giving installers flexibility to position the light below ledges for optimal coverage and reduced shadowing. The Quick Connect Plug Kit allows fast detachment for servicing, while the eyeball-style lens delivers directional lighting with enhanced spread. Available in fixed colours (Blue, White, Warm White) or Multi-Colour, EvoFG integrates with Aqua-Quip’s InstaTouch Smart Lighting Controller, wall switches, or third-party systems.
Whether you’re upgrading a fibreglass pool or adding ambience to a vinyl install, EvoFG delivers clean aesthetics, reliable performance, and installer-friendly features.
⚙️ Technical Specifications
| Feature | Details |
|---|---|
| Light Type | Flush-mounted LED niche light |
| Pool Type | Fibreglass & above-ground vinyl pools |
| Colour Output | Fixed Blue, White, Warm White or Multi-Colour |
| Cable Length Options | 20m, 30m |
| Niche Hole Size | 60mm (panel thickness up to 40mm) |
| Protrusion from Wall | 29mm |
| Lens Diameter | 118mm |
| Voltage Compatibility | 12V AC |
| Power Consumption | Multi-Colour: 20VA max |
| Fixed Colour: 11VA | |
| Light Output (Typical) | Blue: 180 lm / White: 550 lm / Warm White: 550 lm |
| IP Rating | IPX8 (submersible) |
| Controller Compatibility | Aqua-Quip InstaTouch, wall switch, third-party systems |
| Brand | Aqua-Quip |
| Certification | Australian Made |
💡 Key Features
- Compact niche fits 60mm wall panel holes (up to 40mm thick)
- Flush-mounted profile with 29mm protrusion
- 1.2m internal cable for flexible positioning below ledges
- Quick Connect Plug Kit for fast servicing

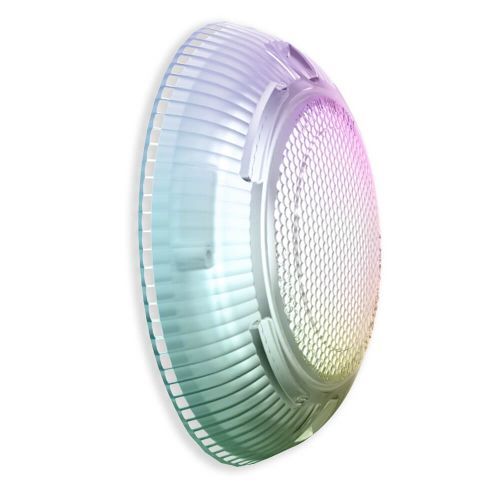

- Directional eyeball-style lens for enhanced illumination
- Available in Blue, White, Warm White or Multi-Colour
- Compatible with InstaTouch and third-party controllers
- Ideal for fibreglass and above-ground vinyl pools
- IPX8-rated for underwater reliability
- Australian made for long-term durability
📦 What’s Included
- 1 x EvoFG LED Pool Light Factory-sealed with compact niche and directional lens.
- 1 x Quick Connect Plug Kit IP-rated plug with colour-coded seals for watertight connection.
- 1 x Installation Guide Step-by-step instructions for fibreglass and vinyl pool mounting.
❤️ Why We Love EvoFG
EvoFG is a smart solution for fibreglass and vinyl pool installs. Its compact niche and flush-mounted design make it easy to retrofit without compromising aesthetics. The internal cable and directional lens give installers full control over placement and light spread, while Aqua-Quip’s trusted LED tech ensures long-term performance.
🧠 Wrap-Up Summary
The Aqua-Quip EvoFG LED Pool Light is engineered for clean installs and brilliant results. With a compact core-drilled niche, flush-mounted finish, and installer-friendly features, EvoFG brings modern LED lighting to fibreglass and vinyl pools—without the hassle.
