Description

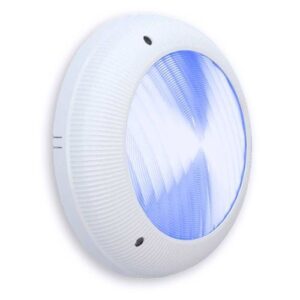

Aqua-Quip QC Series Blue LED Retro-Fit Pool Light
With Concrete Universal Mounting Bracket & Quick Connect Plug Kit
The Aqua-Quip QC Series Blue LED Retro-Fit Pool Light delivers a crisp, high-efficiency upgrade for concrete pools. Designed to replace outdated halogen systems, this unit includes a surface-mounted LED light, a universal twist-lock bracket, and an IP-rated Quick Connect Plug Kit. It ships without cable, making it ideal for installers working with existing wiring or custom setups.
Aqua-Quip’s advanced LED core produces vibrant 475nm blue illumination, evenly diffused across the pool surface. The universal bracket locks securely into over 25 legacy niches—including Spa Electrics, Swimworld, Autumn Solar, and PAL2000—without draining or cutting. With broad voltage compatibility (12V–32V AC) and built-in fault protection, this light installs quickly and performs reliably in tough Australian conditions.
To learn more about the Aqua-Quip QC Series Blue LED Pool Light and the Aqua-Quip range, check out the Aqua-Quip Official Site.
🔄 Compatible Pool Light Brands (Retrofit Chart)
The QC Series lights are designed to replace the following surface-mounted pool lights:
| Aqua-Quip Classic, Spectrum, Halogen | Sunline / Rivendale |
| Aqua-Quip QC Series | Emaux E-Lumen |
| Spa Electrics GKRX, GK7, GZ Series | Waterco Britestream MKIV & MKV |
| Swimworld | Zodiac Lumipower SM |
| Autumn Solar Series 1–8 | Magic Pool Products |
| PAL2000 | Filtrite SM400 (requires locating bar) |
| Pool Rite | Varimode |
| Stroud | Stroud C150 |
⚙️ Technical Specifications
| Feature | Details |
|---|---|
| Light Type | Surface-mounted LED |
| Pool Type | Concrete pools |
| Colour Output | Fixed Blue (475 nm wavelength) |
| Cable | Not included |
| Mounting Kit | Universal concrete bracket included |
| Voltage Compatibility | 12V AC – 32V AC |
| Retrofit Compatibility | Fits 25+ legacy models |
| Installation | Surface mount with IP68-rated Quick Connect Plug Kit |
| Protection Rating | IPX8 (submersible up to 2.0m depth) |
| Temperature Range | 0°C – +40°C pool water |
| Power Consumption | Max 16VA |
| Light Output (Typical) | Blue = 135 lumens |
| Rim Colour Options | White or Metallic Grey |
| Fault Protection | Thermal cut-out + voltage transient clamping |
| Certification | Australian Made |
| Brand | Aqua-Quip |
💡 Key Features
- Fixed blue LED output for crisp underwater ambience
- Surface-mounted LED with universal retrofit bracket
- IP-rated Quick Connect Plug Kit for watertight installation
- Compatible with Spa Electrics, Swimworld, Autumn Solar & more
- Works with existing 12V–32V AC transformers
- Rim available in White or Metallic Grey
- Built-in thermal and voltage protection
- Australian made for long-term durability
- Cable not included—sold separately
📦 What’s Included
- 1 x QC Blue Retro-Fit LED Light (P/N LED021) Factory-sealed with proprietary diffusion lens for even colour dispersion.
- 1 x Universal Mounting Bracket (P/N APL050) Multiple screw hole patterns for wide retrofit compatibility.
- 1 x Quick Connect Plug Kit (P/N LED375) Waterproof, colour-coded seals for secure cable connection.
- 1 x Design Ring – White (P/N LED151) or Metallic Grey (P/N LED152) Adds a sleek, decorative finish to the installed light.
- 1 x PE6 Screw Kit (P/N APL006) Secures the light to the mounting bracket’s three posts.
🧠 Why Choose Aqua-Quip QC Series Blue LED Pool Light?
The Aqua-Quip QC Series Blue LED Retro-Fit Pool Light is a smart, installer-friendly solution for concrete pools—offering crisp blue illumination, wide retrofit compatibility, and fast, watertight installation. With no cable included, it’s ideal for custom setups or replacements where infrastructure is already in place.
📄 Download the QC Series Programming Guide (PDF)
📄 Download QC Series Concrete Installation Manual (PDF)
