Description

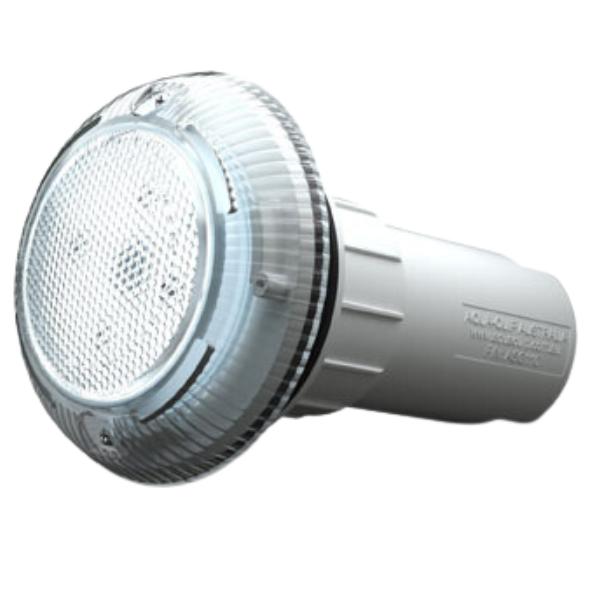

Aqua-Quip EvoCR LED Pool Light
Small Footprint. Big Impact. Built for Upgrades.

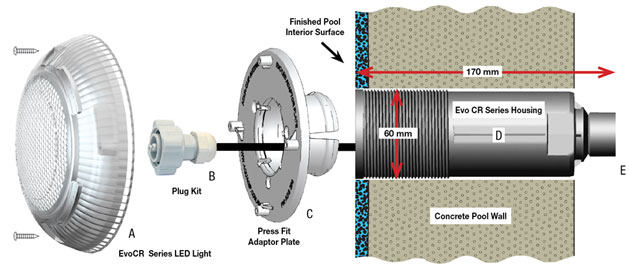

The Aqua-Quip EvoCR LED Pool Light is purpose-built for renovators upgrading existing concrete pools. With a compact 60mm housing and flush-mounted profile, EvoCR installs cleanly into core-drilled pool walls—delivering modern LED performance without major structural changes.
Its eyeball-style lens allows directional lighting, while the press-fit adaptor plate provides angular and depth adjustment for precise placement. The rear conduit accepts 20mm rigid PVC, and the Quick Connect Plug Kit ensures fast, watertight servicing. Available in fixed colours (Blue, White, Green) or Multi-Colour, EvoCR integrates with Aqua-Quip’s InstaTouch Smart Lighting Controller, standard wall switches, or third-party automation systems.
Whether you’re modernizing an outdated pool or adding ambience to a spa or water feature, EvoCR offers a clean finish, reliable performance, and installer-friendly flexibility.
⚙️ Technical Specifications
Feature | Details |
---|---|
Light Type | Flush-mounted LED retrofit light |
Pool Type | Renovated concrete pools, spas, water features |
Colour Output | Fixed Blue, White, Green or Multi-Colour |
Cable Length | 20m |
Mounting Style | Core-drilled flush mount |
Housing Diameter | 60mm |
Protrusion from Wall | 29mm |
Lens Diameter | 118mm |
Voltage Compatibility | 12V AC |
Power Consumption | Multi-Colour: 20VA max |
Fixed Colour: 11VA | |
IP Rating | IPX8 (submersible) |
Controller Compatibility | Aqua-Quip InstaTouch, wall switch, third-party systems |
Brand | Aqua-Quip |
Certification | Australian Made |
💡 Key Features
- Compact 60mm housing for core-drilled concrete pools
- Flush-mounted profile with 29mm protrusion

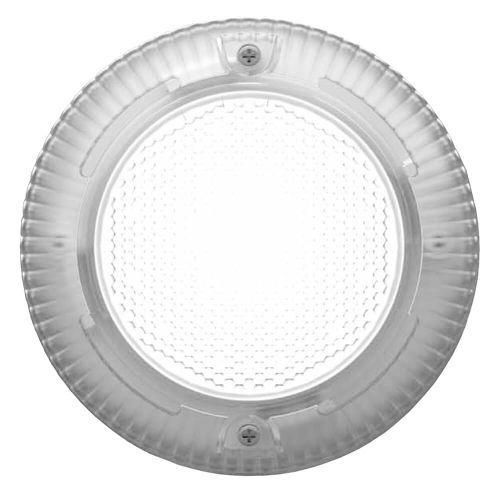

- Eyeball-style lens for directional lighting
- Press-fit adaptor plate for angular and depth adjustment
- Quick Connect Plug Kit for fast, watertight servicing
- Available in Blue, White, Green or Multi-Colour
- Compatible with InstaTouch and third-party controllers
- Ideal for spas, water features, and pool renovations
- IPX8-rated for underwater reliability
- Australian made for long-term durability
📦 What’s Included in the Box
- 1 x EvoCR LED Pool Light Factory-sealed with compact housing and directional lens.
- 1 x Quick Connect Plug Kit IP-rated plug with colour-coded seals for watertight connection.
- 1 x Installation Guide Step-by-step instructions for core-drilled concrete pool mounting.
❤️ Why We Love EvoCR
EvoCR is the go-to solution for renovators who need performance without compromise. Its compact housing and flush-mounted design make it ideal for retrofitting concrete pools, while the directional lens and adjustable mounting plate give installers full control over light placement. With Aqua-Quip’s trusted LED technology and Quick Connect system, EvoCR delivers a clean upgrade that’s fast, reliable, and built to last.
🧠 Wrap-Up Summary
The Aqua-Quip EvoCR LED Pool Light is engineered for retrofit success. With a compact core-drilled housing, flush-mounted finish, and installer-friendly features, EvoCR brings modern LED brilliance to older concrete pools, spas, and water features—without the need for major reconstruction.
