Description
NanoTek™ Graphitic Solar Collector
Maximum heat. Minimal roof space. Built for Australian conditions.
NanoTek™ Solar Collector isn’t just another solar strip—it’s a high-performance thermal engine built for serious pool heating. Engineered with advanced co-extrusion technology, NanoTek fuses a matte MaxBlack outer layer with a nano-graphitic inner core to deliver up to 40% more heating performance than traditional mono-polymer collectors. That means faster heat-up times, longer swim seasons, and lower energy bills.

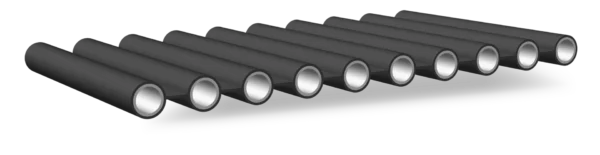

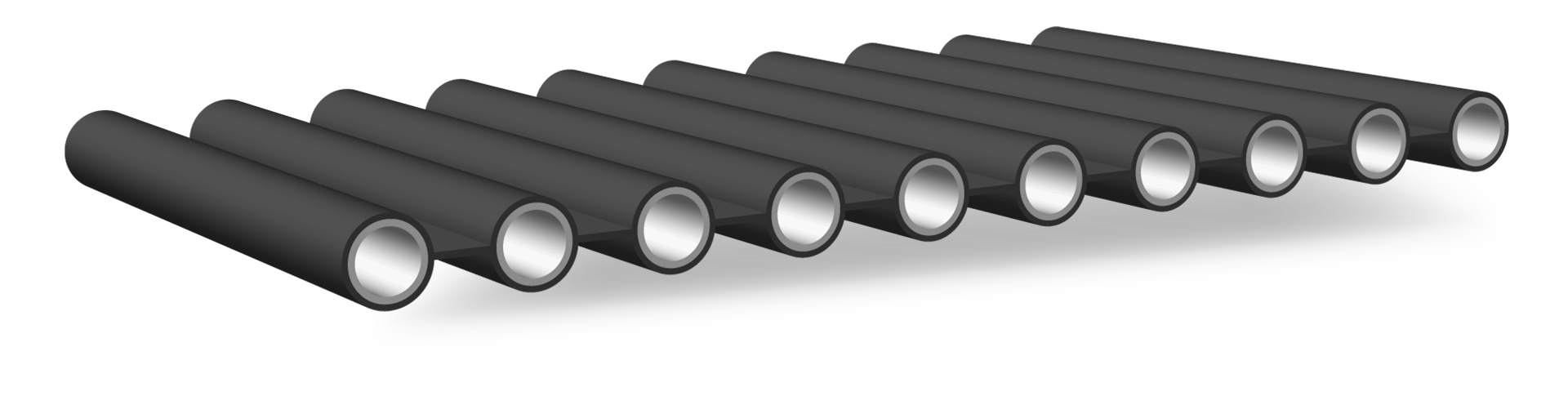

Its 10-tube design features 8mm x 8mm square bore channels, allowing 18% more water flow and holding 3.4L of water per square metre. The nano-graphitic core transfers solar energy 30% faster, ensuring rapid heat delivery even in low-sun conditions. Whether you’re working with limited roof space or pairing with PV panels, NanoTek’s sleek, low-profile footprint makes it a perfect fit.
But performance is only half the story. NanoTek is built to last in Australia’s harshest climates. It resists UV degradation, ozone exposure, chemical corrosion, and mechanical fatigue—all while maintaining strong sealing retention to barbs. It’s a collector that works hard, holds up, and keeps delivering year after year.
✅ Key Benefits
- MaxBlack matte outer layer absorbs 20% more solar radiation
- Nano-graphitic inner core transfers heat 30% faster
- 8mm square bore tubes increase water flow by 18%
- 10-tube layout with 3.4L water capacity per m²
- 40% more efficient than standard collectors
- Climate Care Certified and SRCC Certified
- 20-Year Extended Warranty when installed with premium Boss components
📐 Technical Specs
| Attribute | Value |
|---|---|
| Tube Count | 10 tubes per strip |
| Tube Diameter | 8mm ID (square bore) |
| Strip Width | 150mm |
| Water Volume | 3.4L per m² |
| Material Layers | MaxBlack outer + Nano-Graphitic core |
| UV Resistance | Maximum |
| Chemical Resistance | Enhanced |
| Roof Compatibility | All roof types, shapes, and pitches |
| Warranty | 15 years (with Boss TufMan system) |
| Certifications | Climate Care, AS 2369.2 compliant |
🛠️ Installation & Compatibility
NanoTek is modular, flexible, and designed for fast installation across all roof types. It pairs seamlessly with Boss TufMan manifolds, VacRel vacuum relief valves, and TufFilta inline filters for a complete, high-efficiency system. Its low-profile design also makes it ideal for homes with limited roof space or co-located solar PV panels.
💬 Final Thoughts
NanoTek™ is more than a collector—it’s a strategic upgrade for anyone serious about pool heating. Whether you’re an installer looking for maximum output with minimal roof coverage, or a homeowner wanting reliable, eco-friendly warmth, NanoTek delivers. It’s smart, durable, and engineered to outperform.
Ready to heat smarter? and get expert guidance on sizing, layout, and installation.
