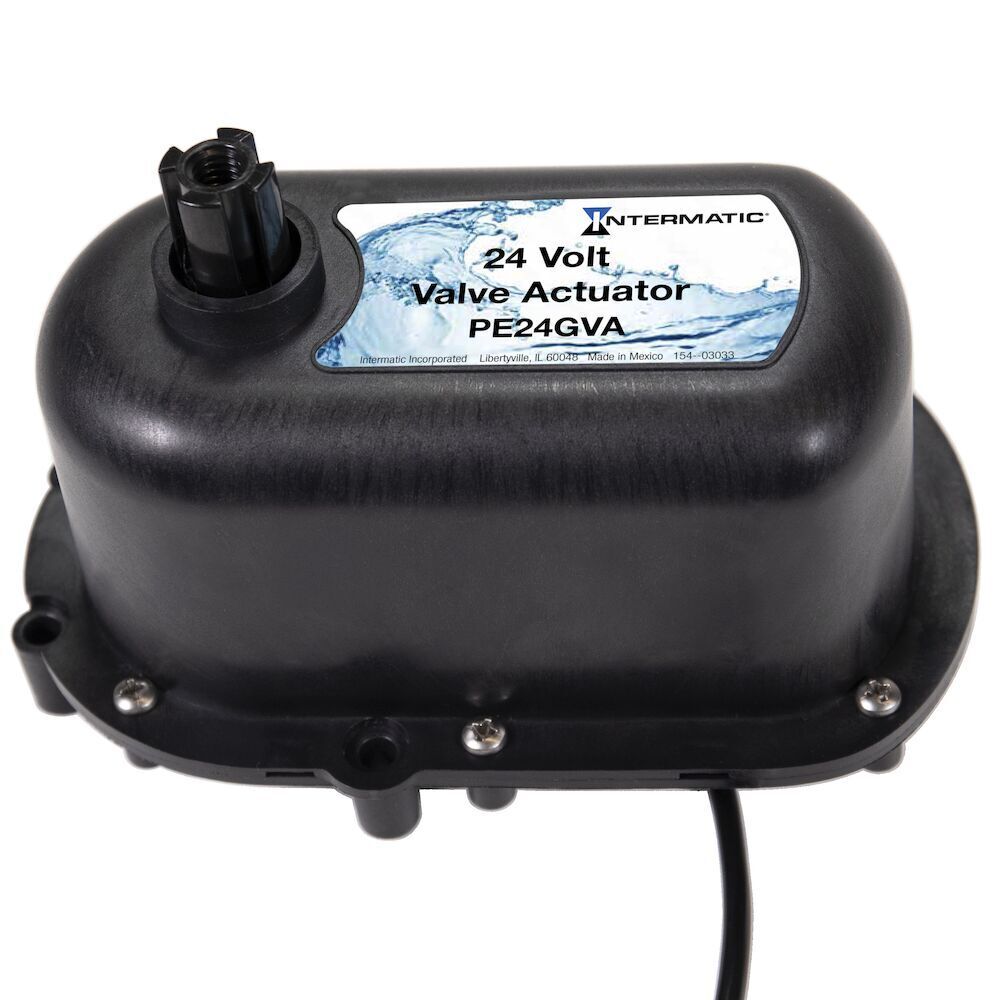

Intermatic PE24GVA – 24v Valve Actuator

Description

🛠️ Key Features

• Voltage & Power: Operates on 24V AC, 60 Hz, drawing 0.75 A during normal operation.
• Duty Cycle: 1 minute ON (max), 8 minutes OFF (min) — suitable for intermittent valve adjustments.
• Connection: 3-wire setup compatible with standard pool/spa automation systems.
• Compatibility: Fits standard 2-way and 3-way 1.5″ and 2″ valves from brands like Waterway, CMP, and Jandy.
• Rotation Control: Fully adjustable rotation angles using toolless cam settings for precise water flow control.

🔧 Installation Highlights

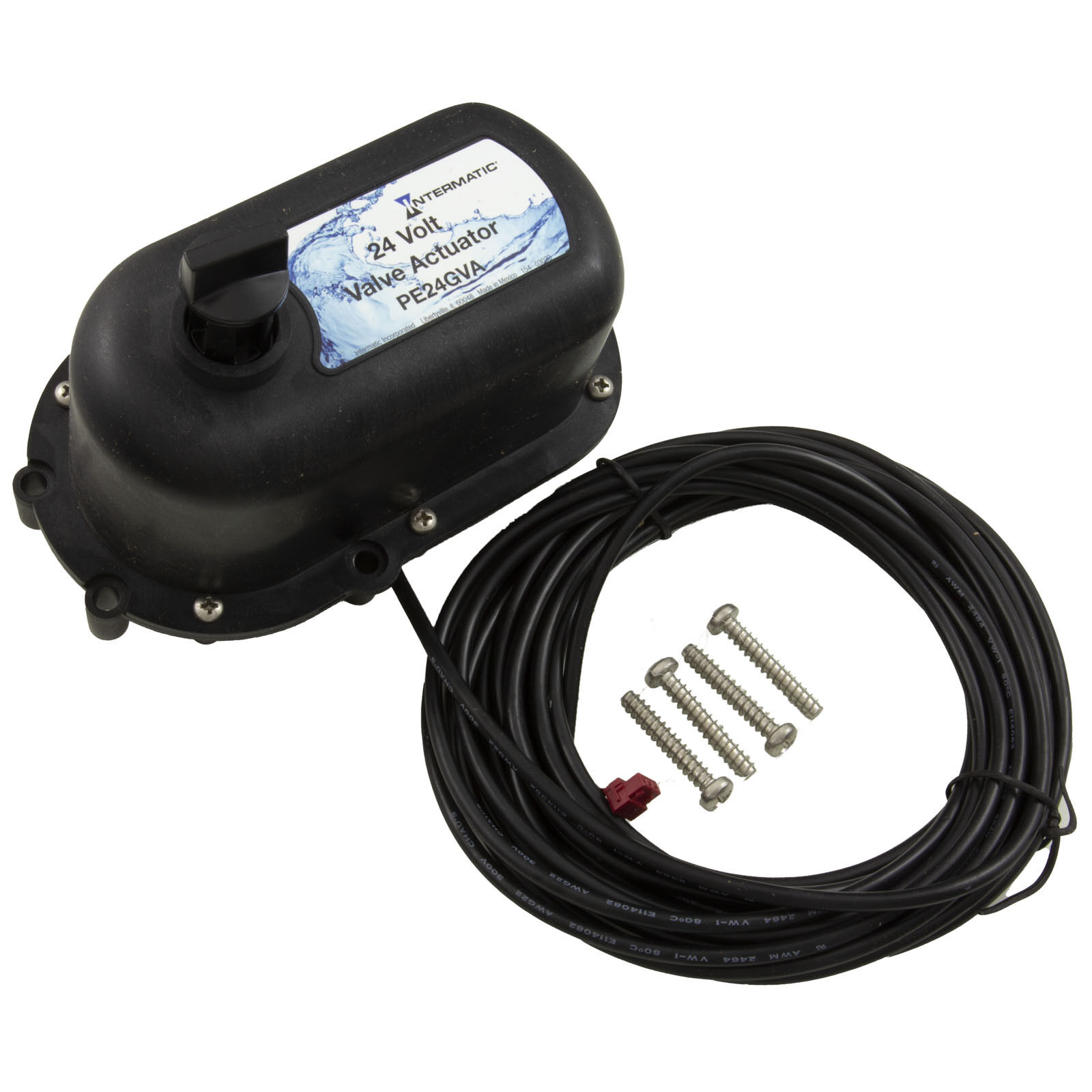

• Mounts directly onto diverter valves using four stainless steel screws.
• Includes a hold-down knob to secure the actuator shaft — finger-tighten only.
• Designed for easy cam adjustment to set clockwise and counter-clockwise stopping points without tools.

🏊 Applications

• Ideal for automating water flow to:
  • Spa heating systems
  • Waterfalls and fountains
  • Pool/spa mode switching
  • Other water features requiring directional control
